Lab 1: The Artemis Board and Bluetooth

Prelab

Setup

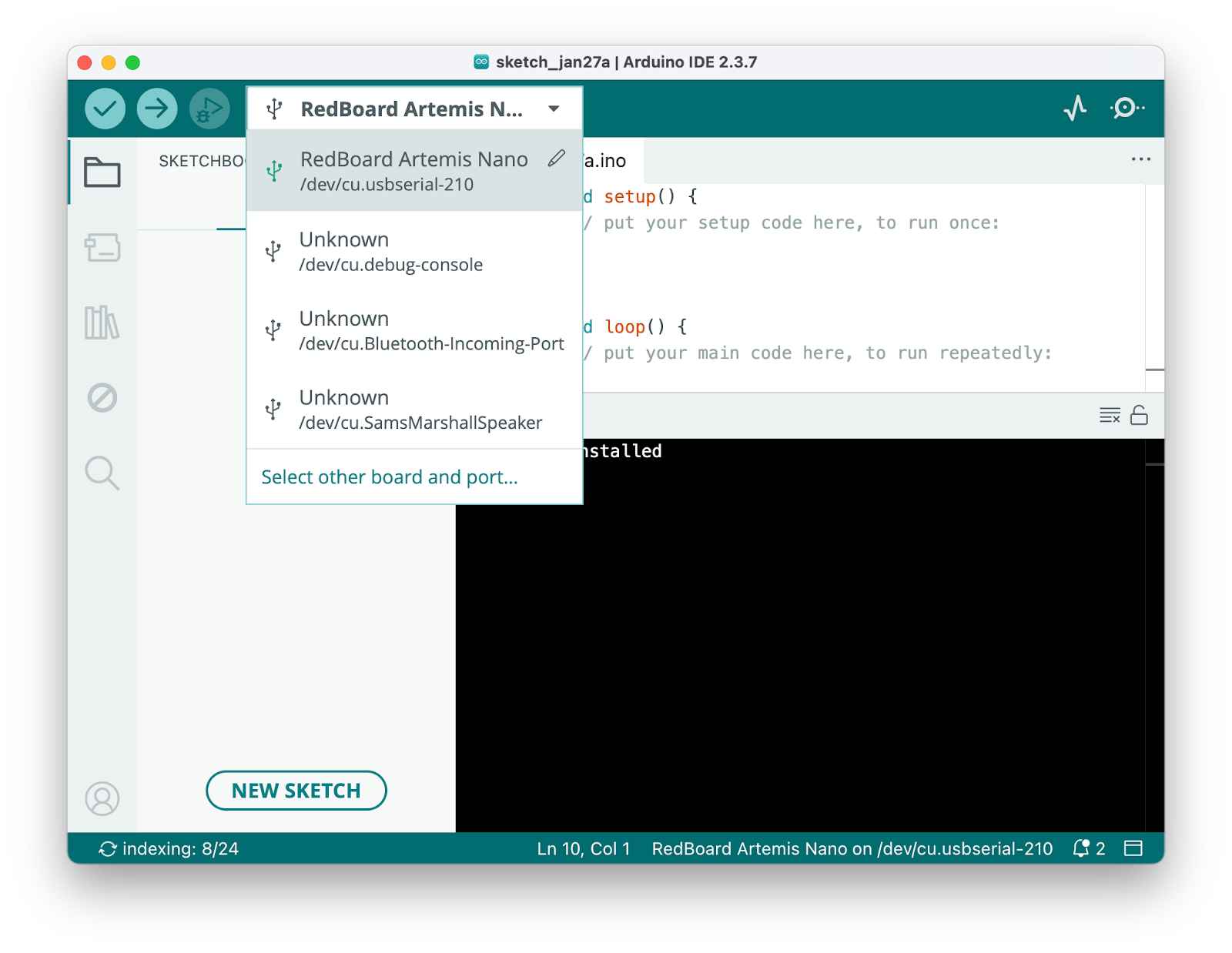

I installed Arduino IDE and added the SparkFun Apollo3 board package. After connecting the Artemis Nano via USB, I selected “RedBoard Artemis Nano” as the board.

Board selection in Arduino IDE

How BLE Works

The Artemis acts as a BLE peripheral that advertises a service. My computer connects as a central device and sends commands through GATT characteristics. Commands are strings formatted as <command_type>:<value1>|<value2>, which the Arduino parses using the RobotCommand class.

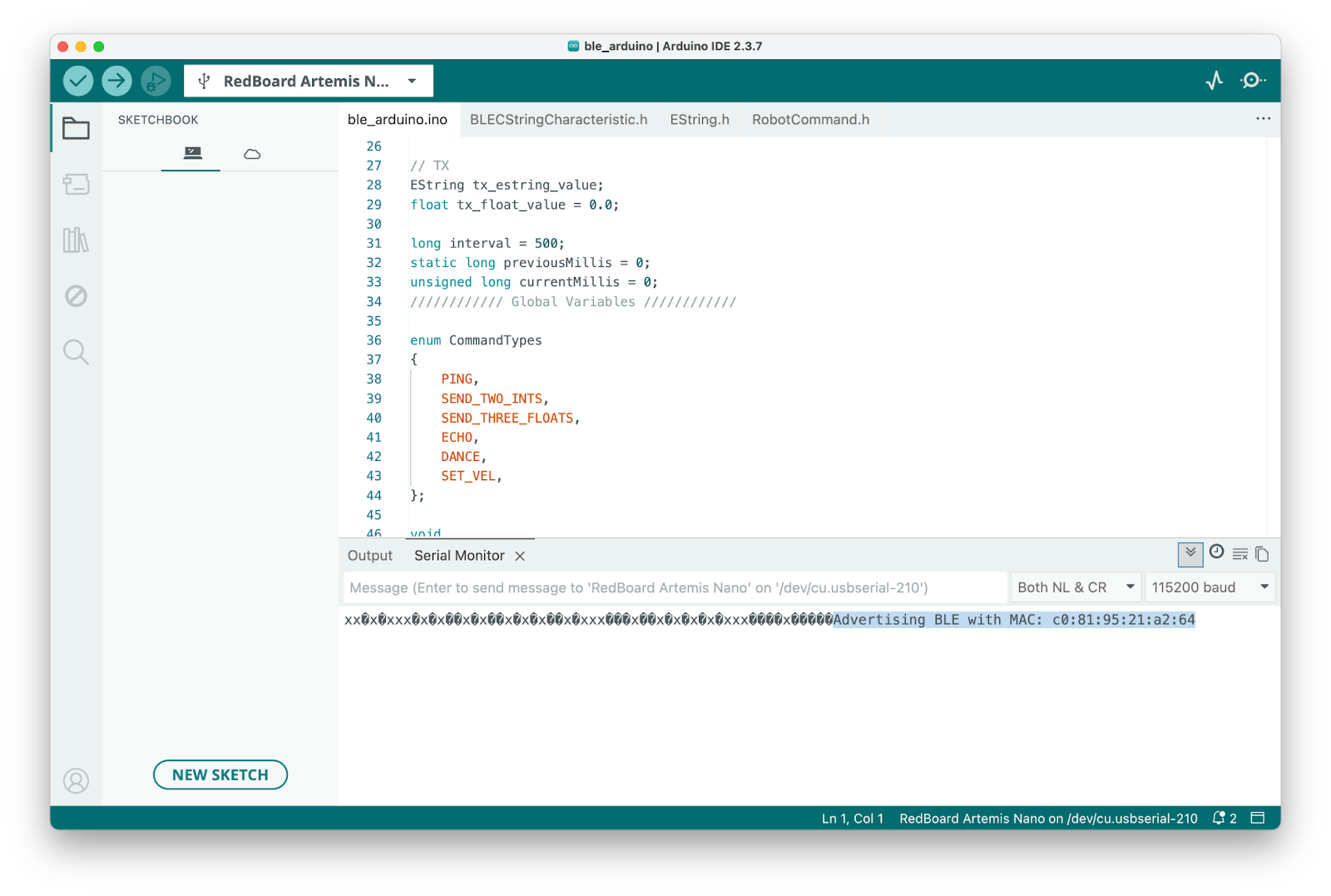

After compiling and uploading the BLE sketch, the board prints its MAC address:

Compiled BLE sketch

Lab 1A

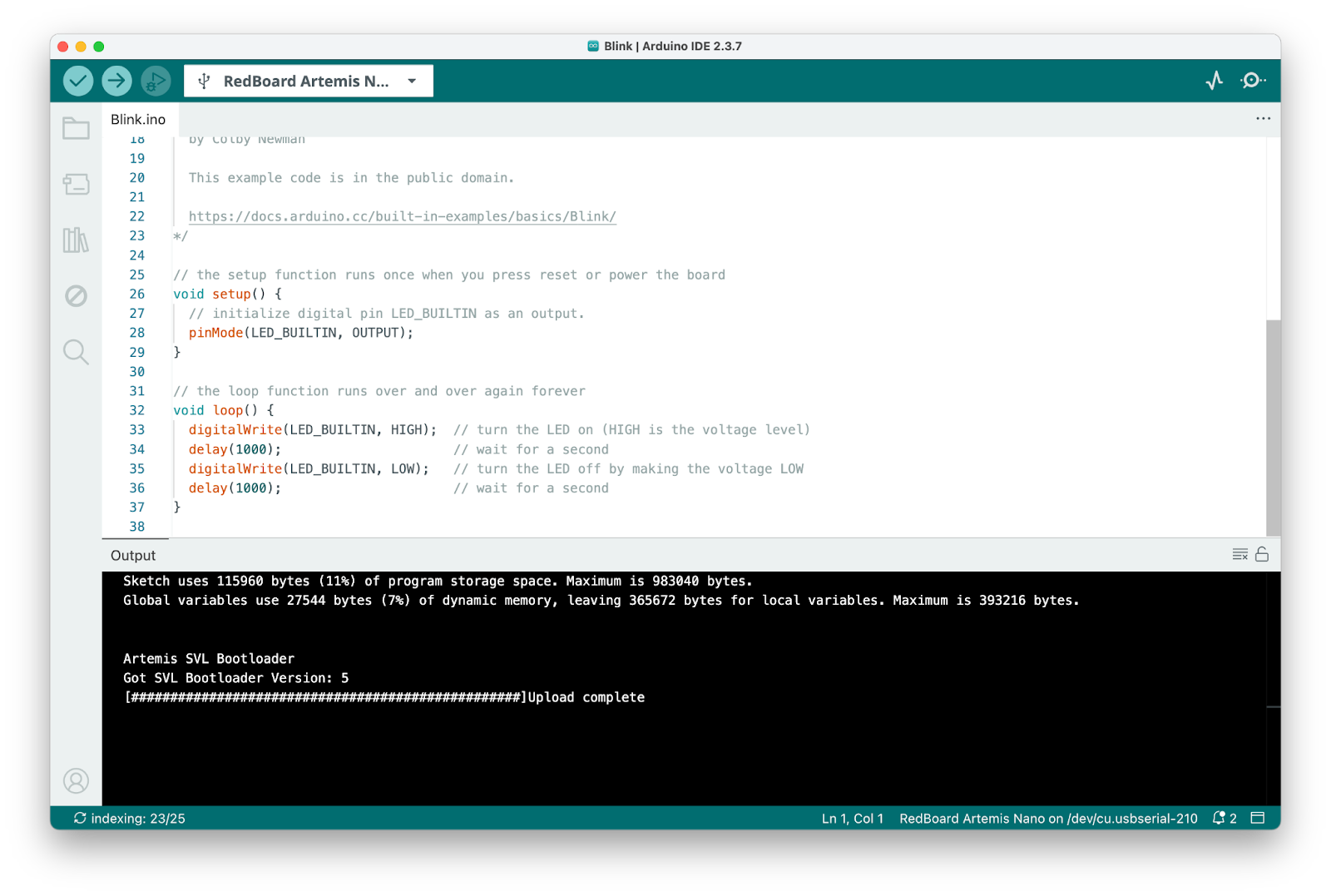

Ran the example from File > Examples > 01.Basics > Blink. The LED blinks on and off.

Blink example in Arduino IDE

Serial

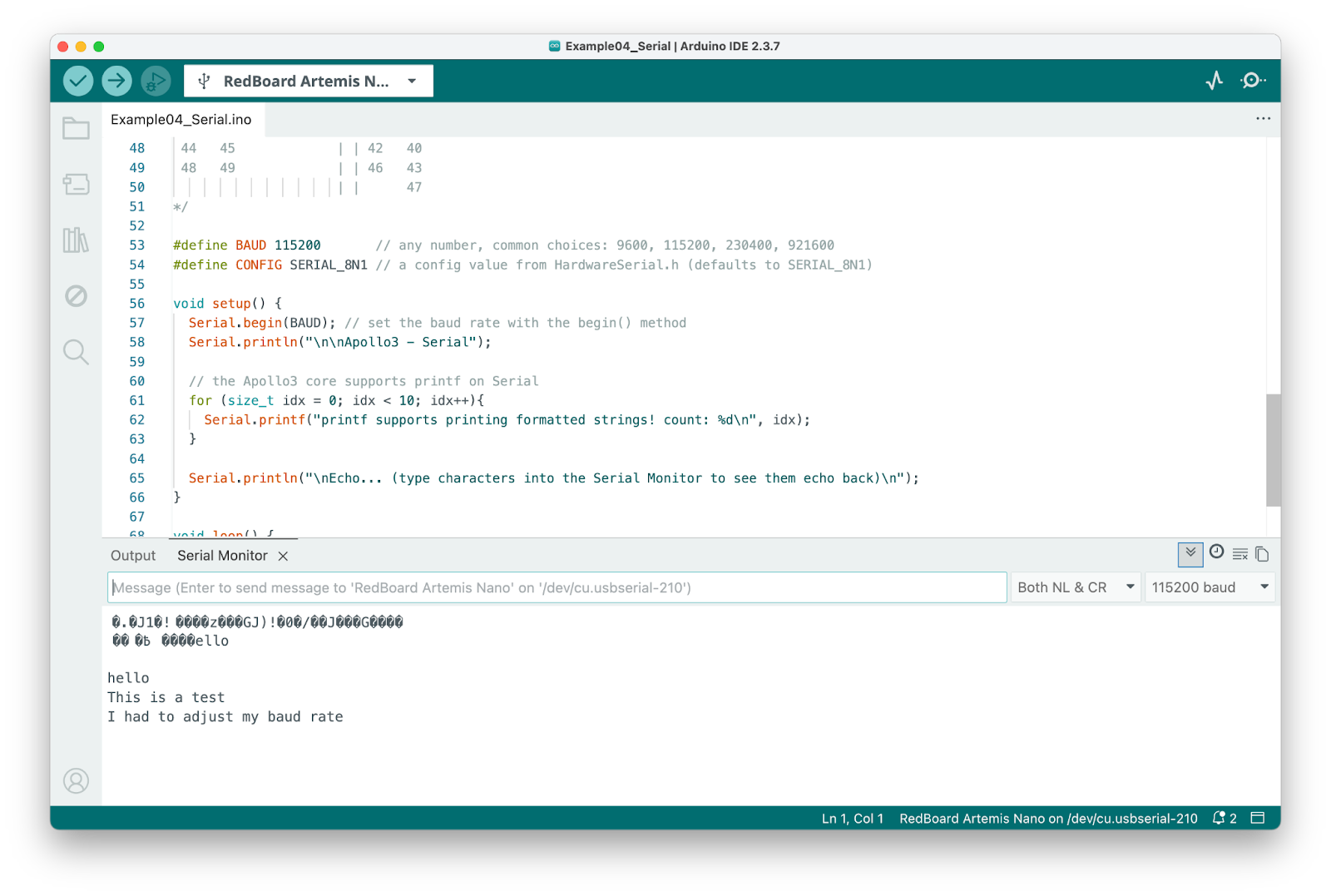

Ran Example4_Serial from the Apollo3 examples. Typed messages in the serial monitor and they echoed back.

Serial communication test

Temperature Sensor

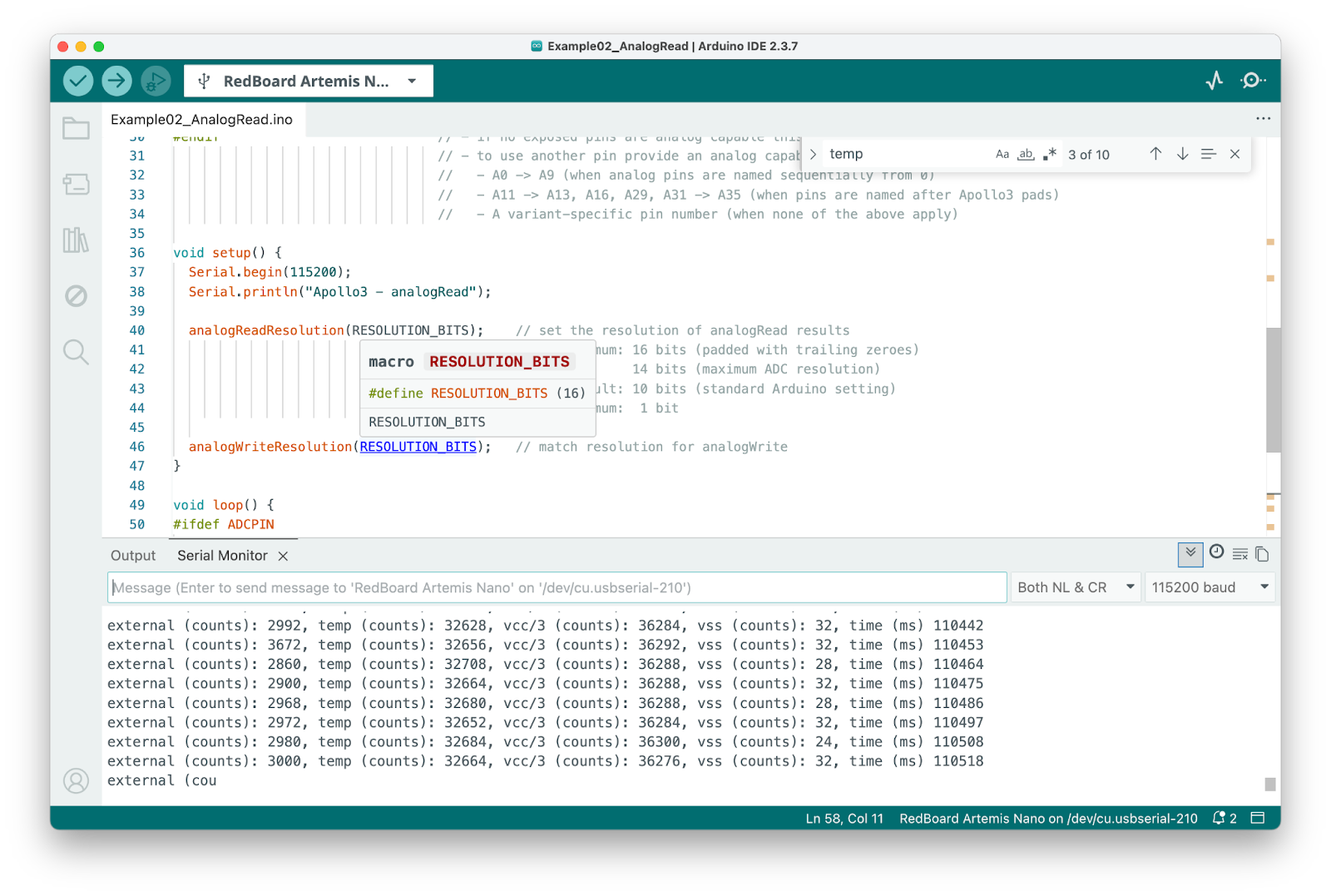

Ran Example2_analogRead. The temperature reading started around 74°F at baseline:

Temperature baseline

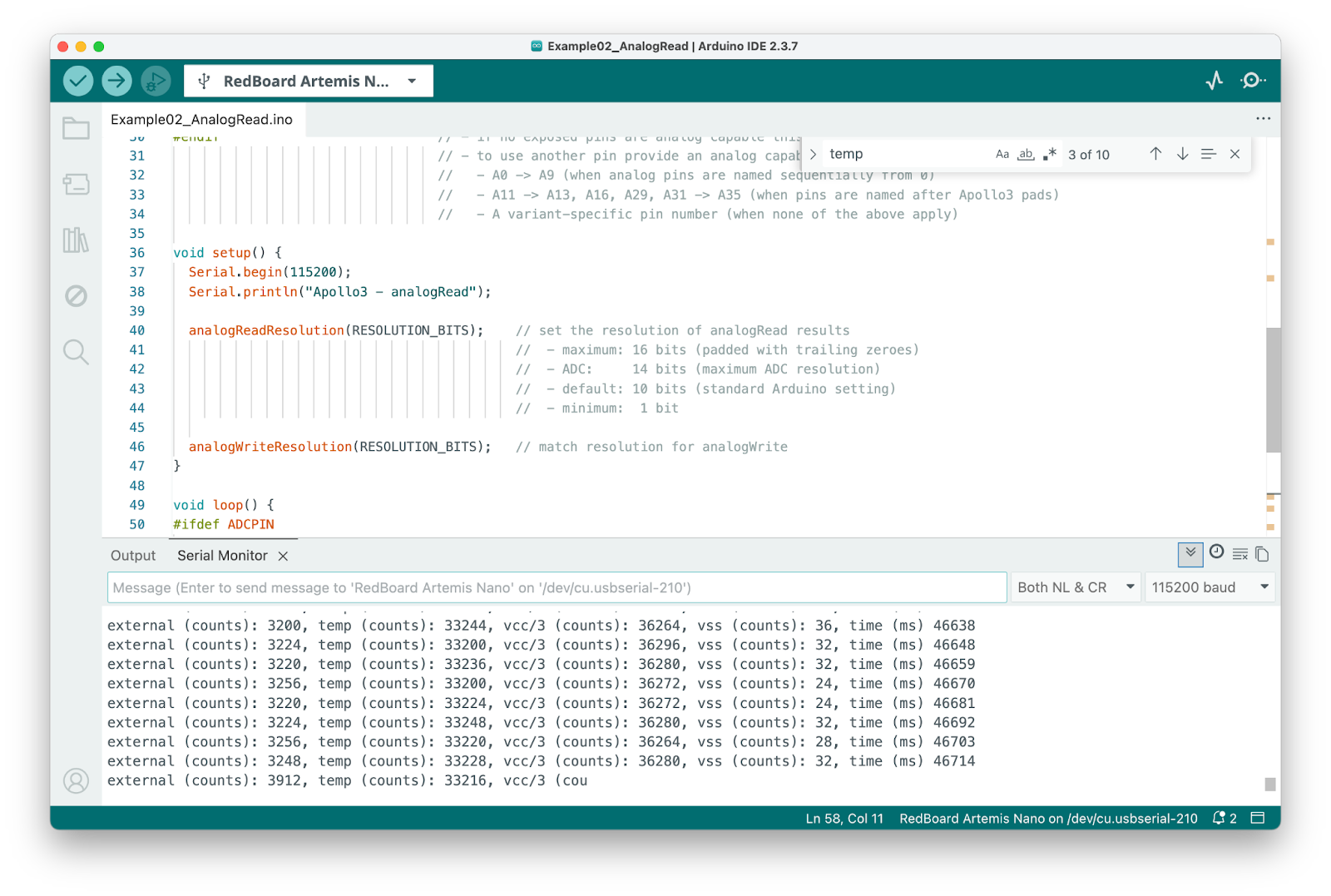

When I touched the chip, the temperature increased:

Temperature when touched

Microphone

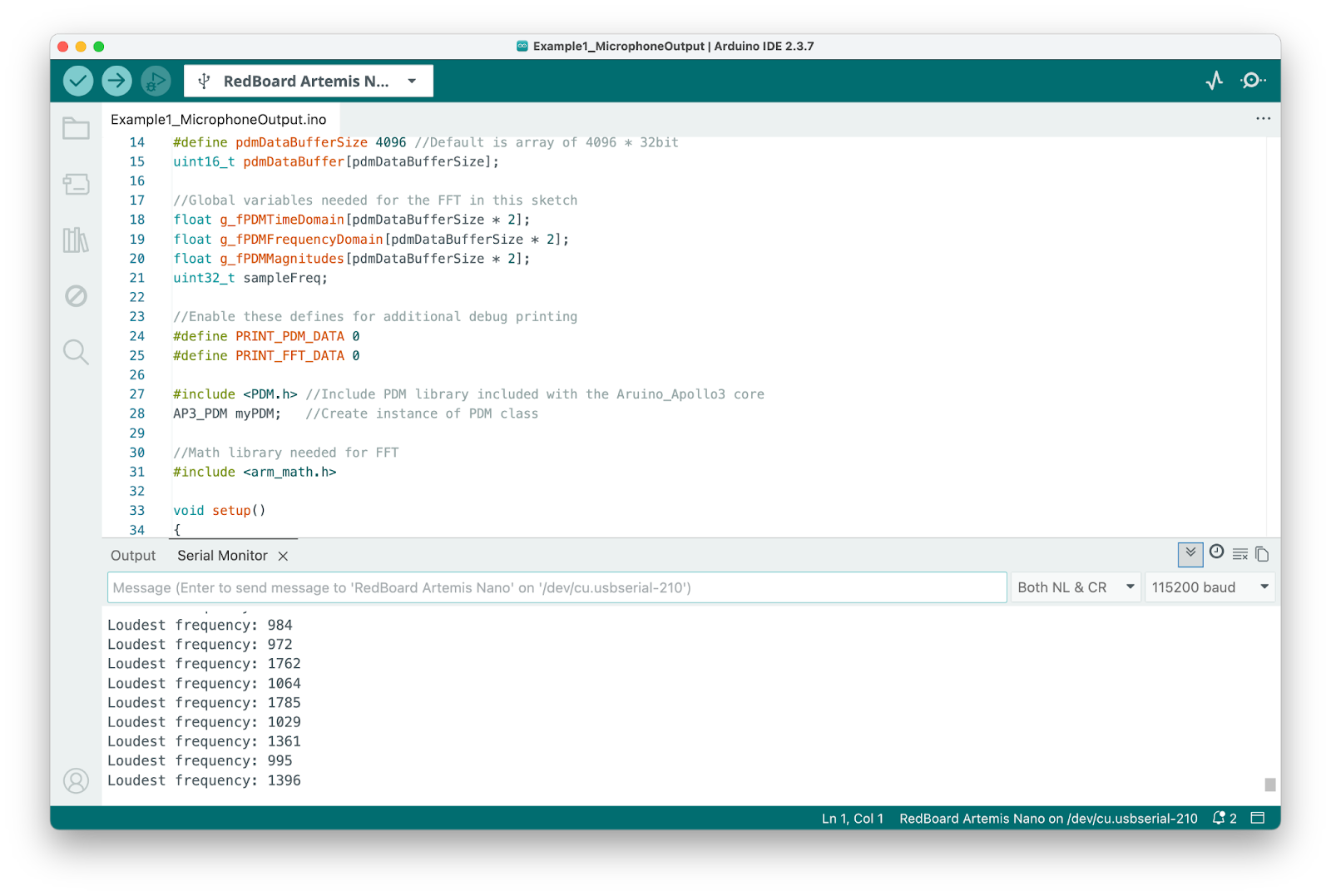

Ran Example1_MicrophoneOutput from the PDM examples. Here’s the baseline with ambient noise:

Microphone baseline

The loudest frequency changed when I made a loud sound (scratching):

Microphone with loud sound

Lab 1B

Configuration

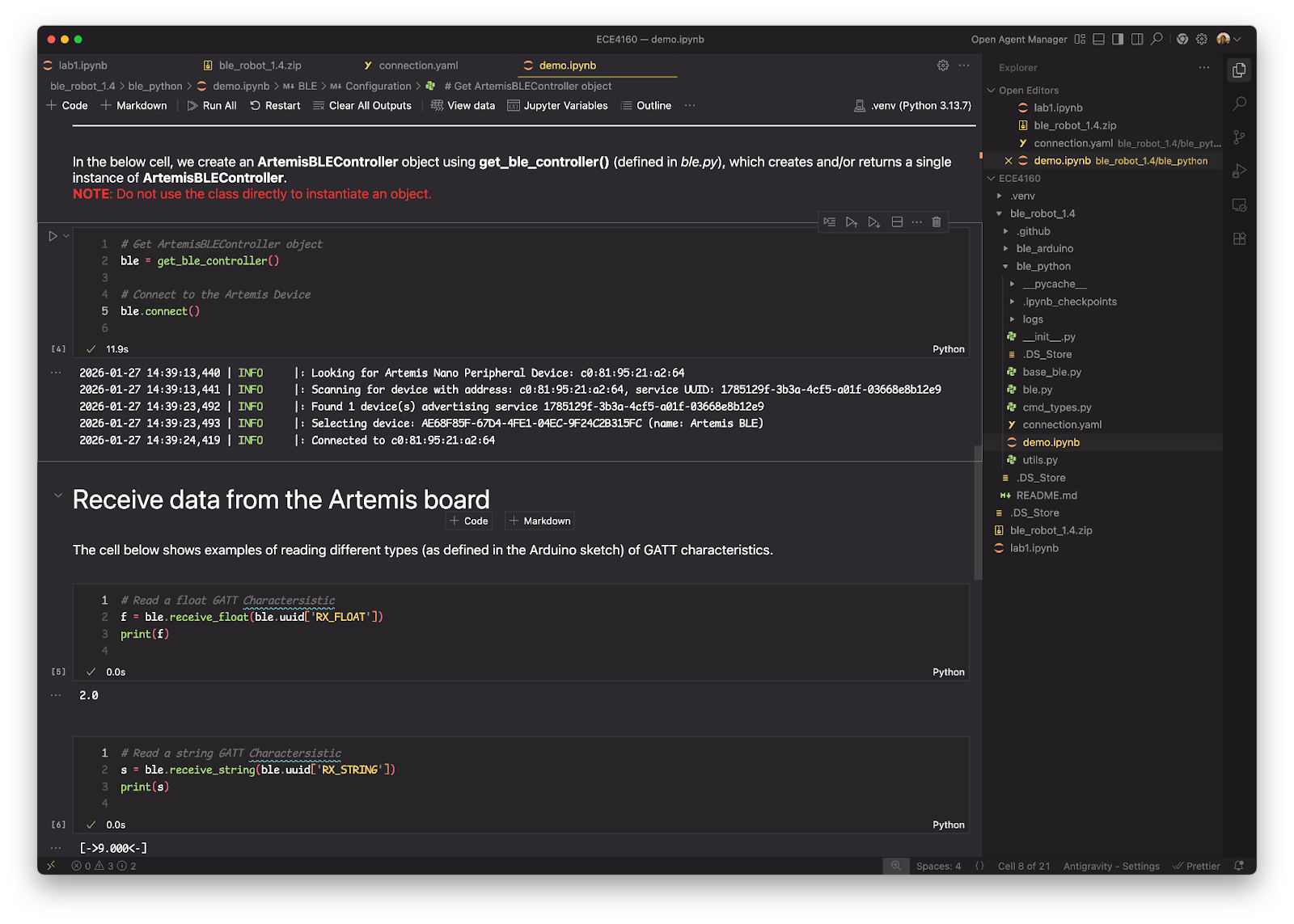

I set my MAC address in connection.yaml and connected from Jupyter:

Connection in Jupyter

Task 1: ECHO

I implemented the ECHO command to send a string and get an augmented response back.

case ECHO:
    char char_arr[MAX_MSG_SIZE];
    success = robot_cmd.get_next_value(char_arr);
    if (!success) return;

    tx_estring_value.clear();
    tx_estring_value.append("Robot Says -> ");
    tx_estring_value.append(char_arr);
    tx_characteristic_string.writeValue(tx_estring_value.c_str());
    break;

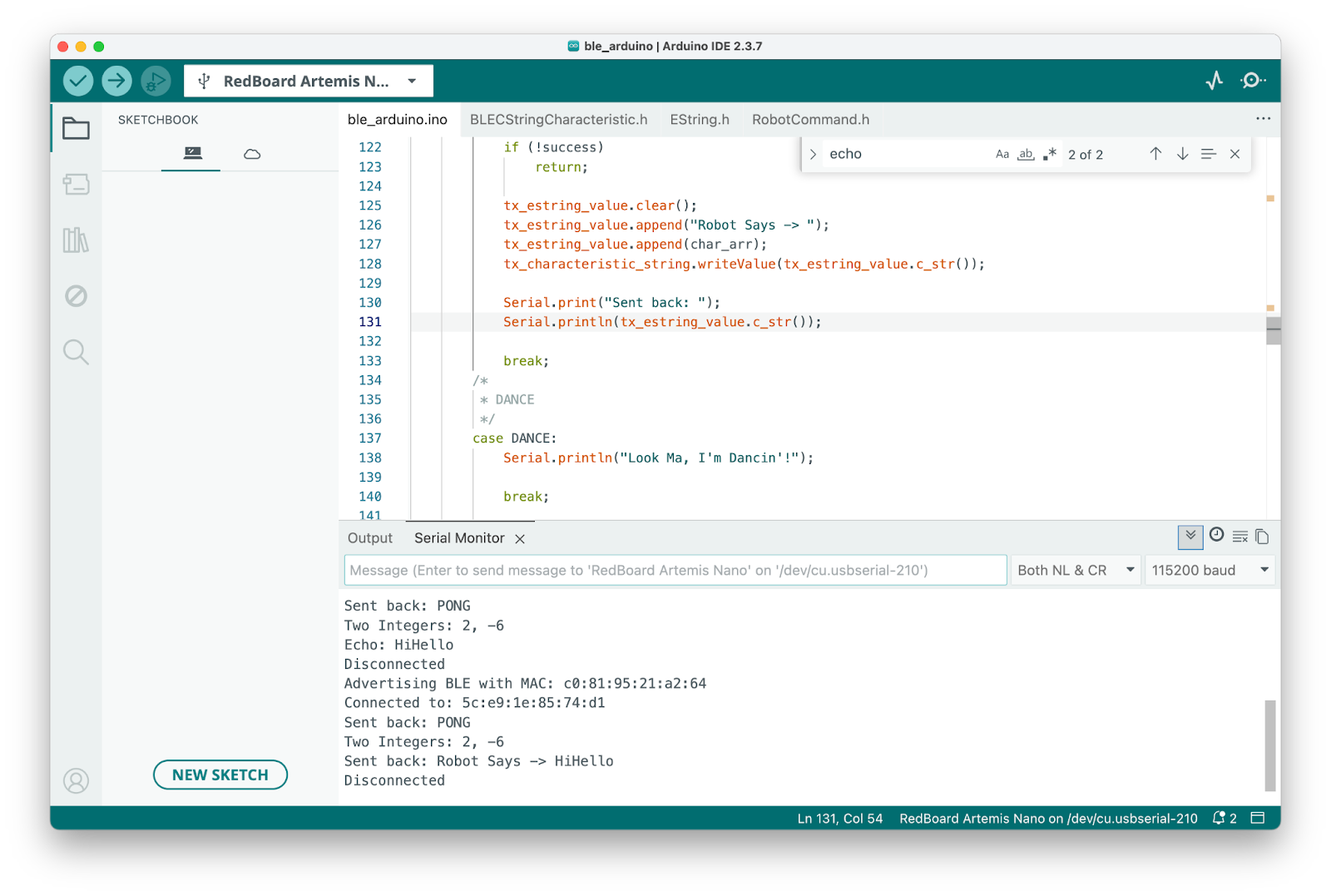

When I send “HiHello”, the Arduino receives it:

ECHO in Arduino

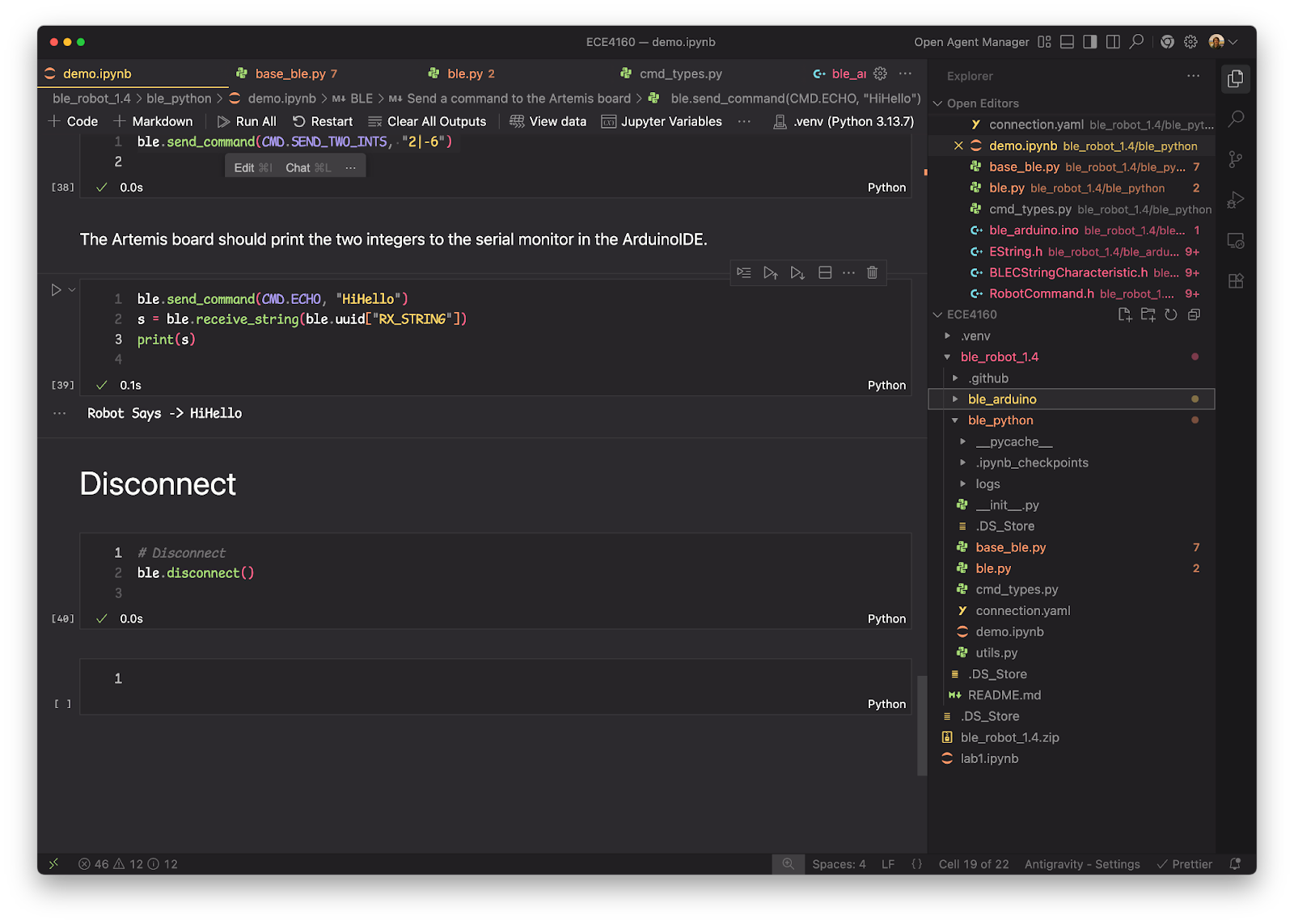

And Python receives the augmented response:

ECHO in Jupyter

Task 2: SEND_THREE_FLOATS

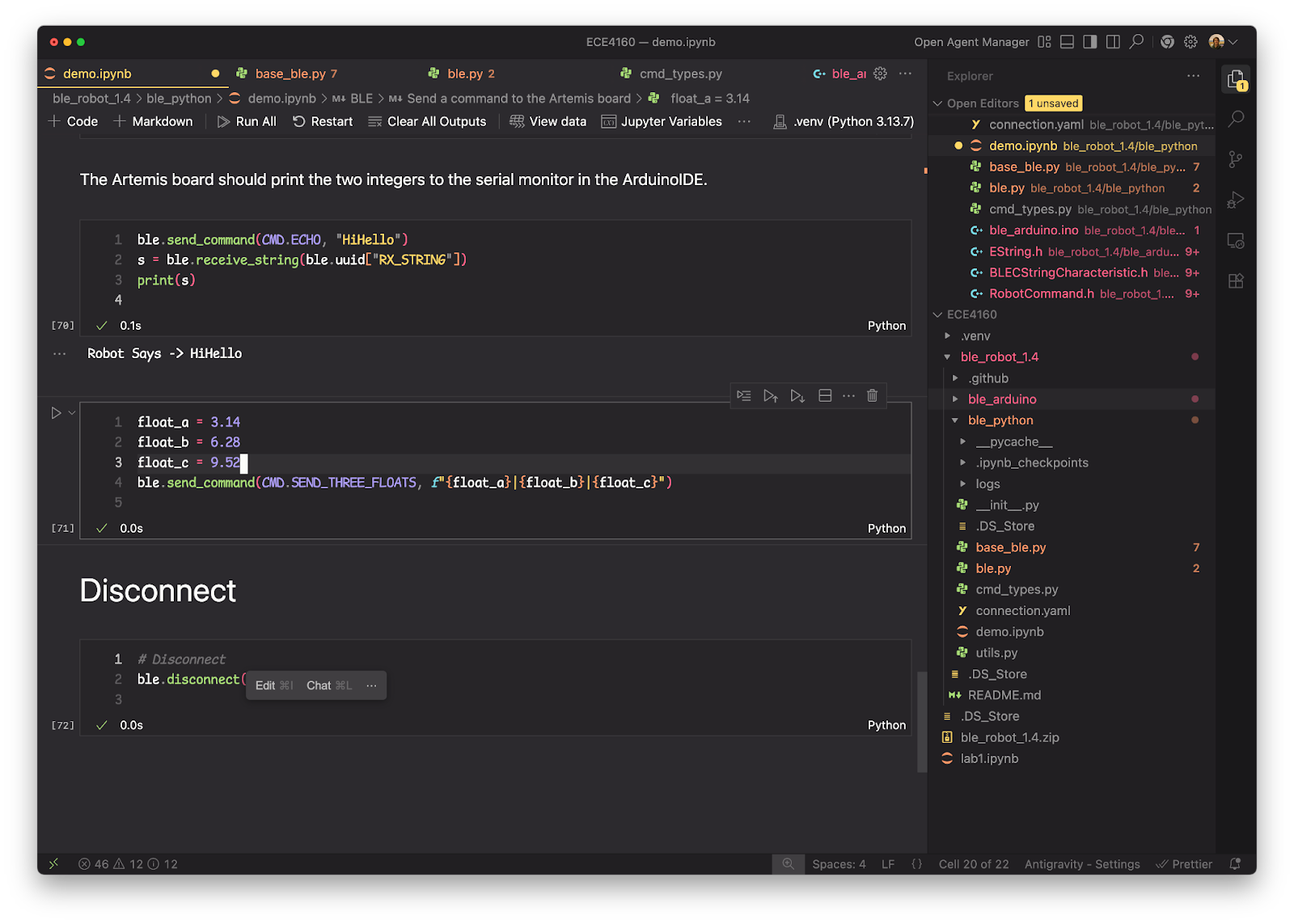

Added a command to receive three floats. Sent from Python:

Send three floats from Jupyter

Arduino receives and prints them:

Three floats in Arduino

Task 3: GET_TIME_MILLIS

This command returns the current time in milliseconds:

case GET_TIME_MILLIS:
    tx_estring_value.clear();
    tx_estring_value.append("T:");
    tx_estring_value.append(millis());
    tx_characteristic_string.writeValue(tx_estring_value.c_str());
    break;

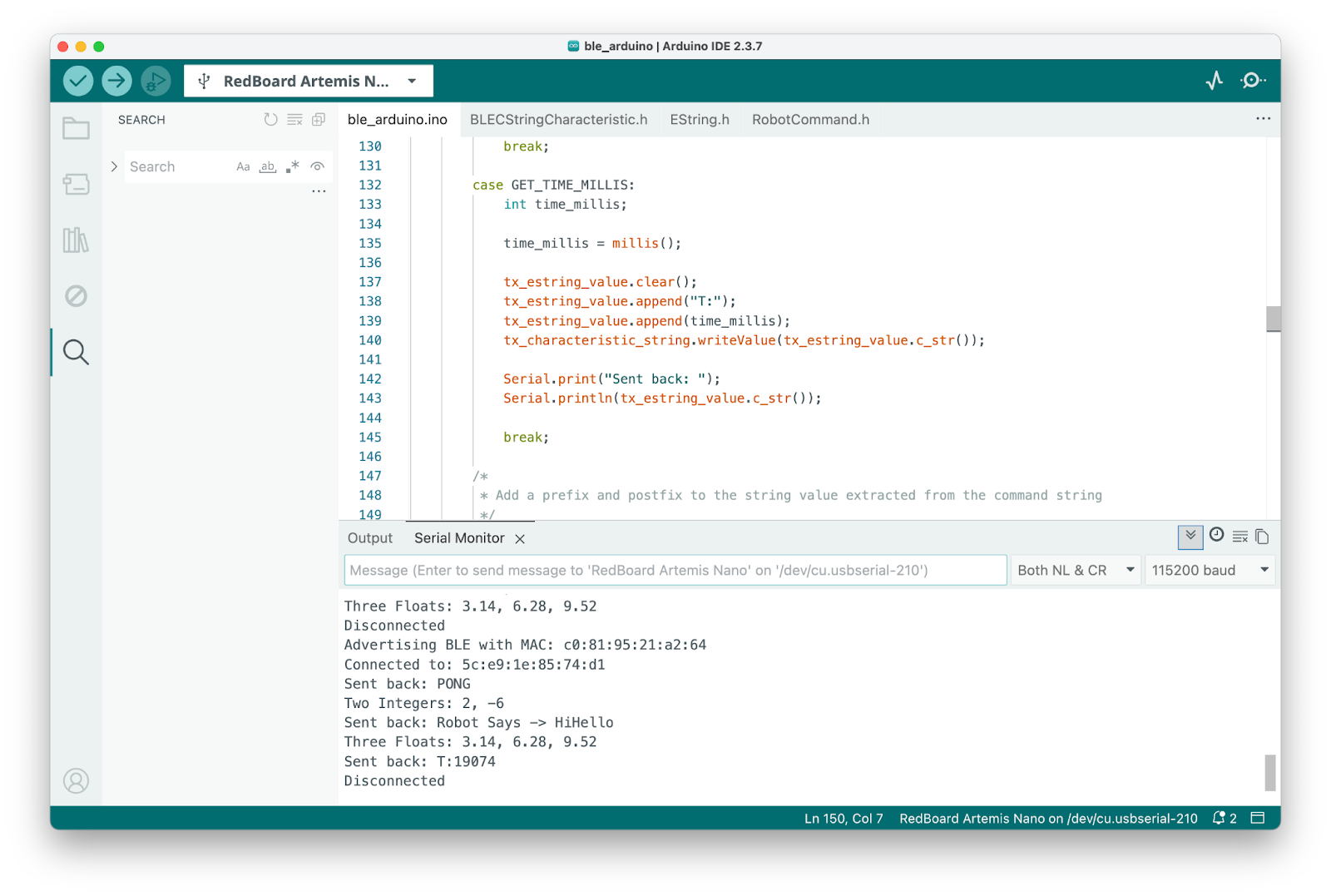

Arduino sends the timestamp:

GET_TIME_MILLIS in Arduino

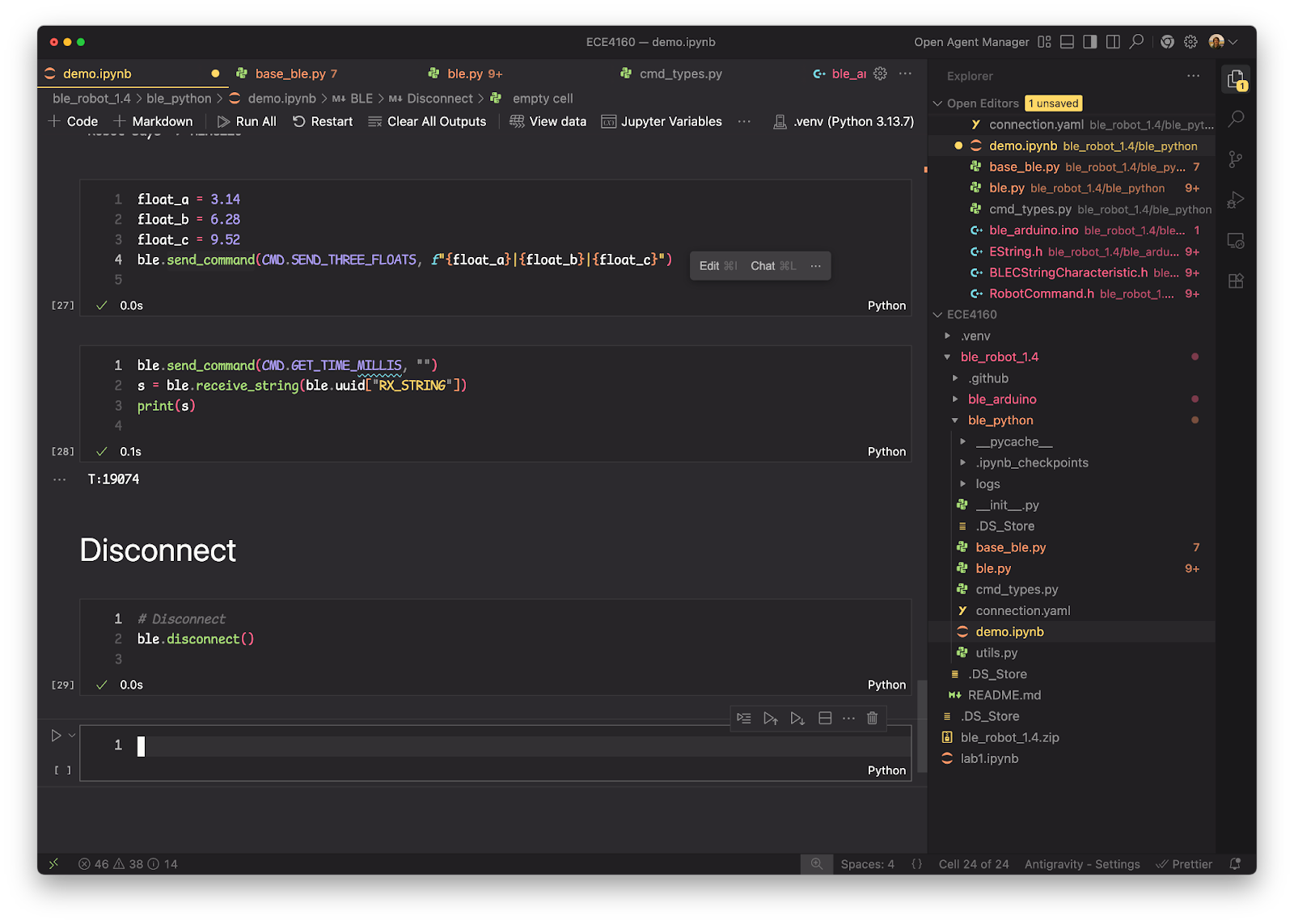

Python receives it:

GET_TIME_MILLIS in Jupyter

Task 4: Notification Handler

I set up a callback in Python to receive data asynchronously. The handler parses the incoming message to extract the timestamp and temperature:

import numpy as np

times = np.array([])
temps = np.array([])

def handle_time(uuid, message):
    global times, temps

    message_str = message.decode()
    arr = message_str.split("|")
    time_str, temp_str = arr[0], arr[1]
    time = float(time_str.split(":")[1])
    temp = float(temp_str)

    times = np.append(times, time)
    temps = np.append(temps, temp)

ble.start_notify(ble.uuid["RX_STRING"], handle_time)

This collects data whenever the Artemis sends a notification.

Task 5: Data Transfer Rate

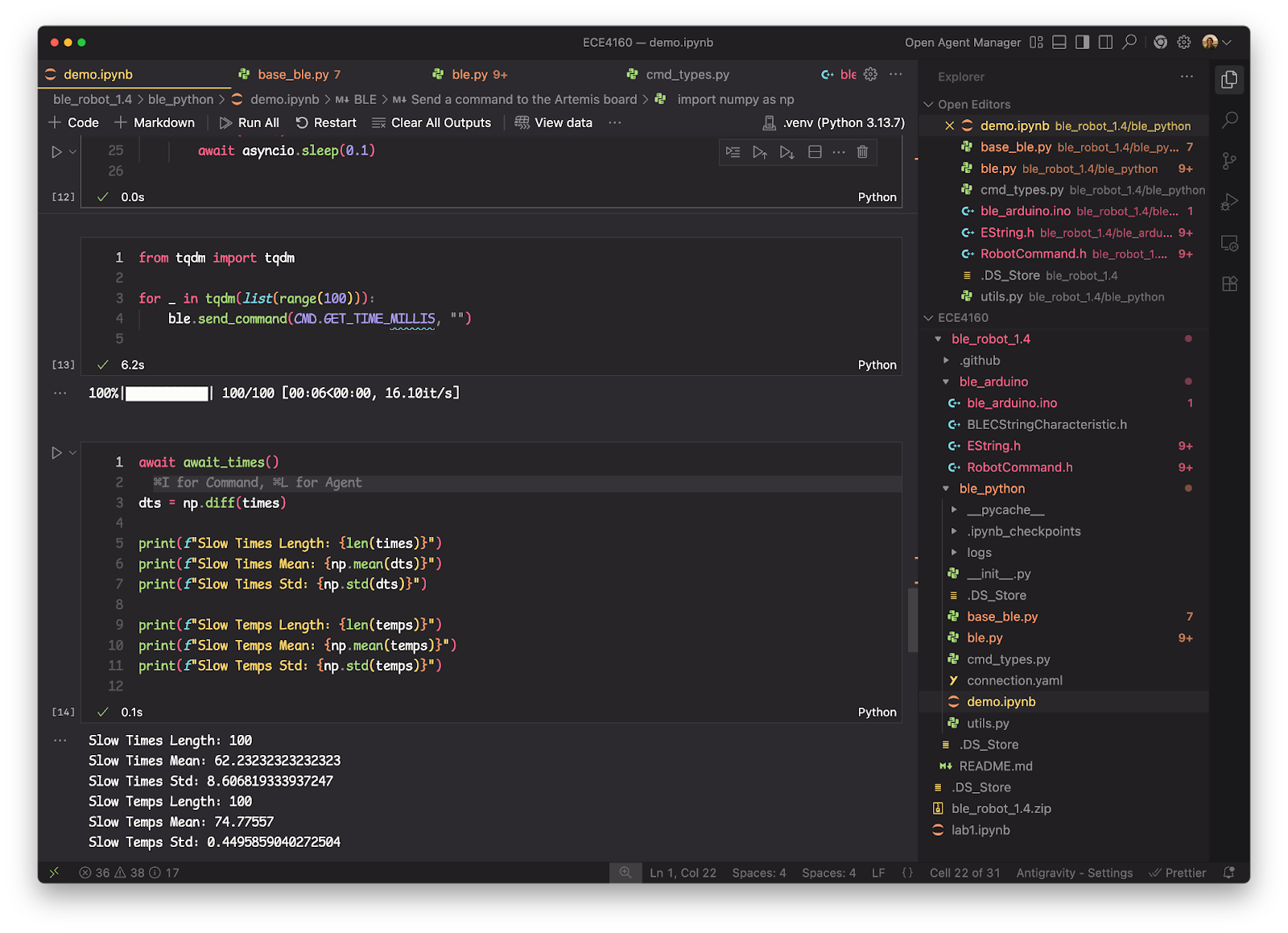

I sent 100 GET_TIME_MILLIS commands and measured the time between messages. Using the slow method (send immediately):

Slow method results

  • Mean: 62 ms between messages
  • Rate: about 16 messages/second

This is slow because each message requires a full BLE round-trip.

Task 6: Store Time Data

Instead of sending each timestamp immediately, I used a circular buffer to store samples and send them later. This avoids BLE overhead during data collection.

#define CIRCULAR_ARR_SIZE (256)
#define CIRCULAR_ARR_MASK (0xff)

int arr_ptr = 0;
int arr_tail = 0;
int time_millis_arr[CIRCULAR_ARR_SIZE];
float temp_arr[CIRCULAR_ARR_SIZE];

void push_time(int time, float temp) {
    time_millis_arr[arr_ptr] = time;
    temp_arr[arr_ptr] = temp;
    arr_ptr = (arr_ptr + 1) & CIRCULAR_ARR_MASK;
    if (arr_ptr == arr_tail) {
        arr_tail = (arr_tail + 1) & CIRCULAR_ARR_MASK;  // overwrite oldest
    }
}

bool get_time(int &time, float &temp) {
    if (arr_tail == arr_ptr) return false;  // empty
    time = time_millis_arr[arr_tail];
    temp = temp_arr[arr_tail];
    arr_tail = (arr_tail + 1) & CIRCULAR_ARR_MASK;
    return true;
}

The STORE_TIME_MILLIS command takes a count parameter and stores n samples:

case STORE_TIME_MILLIS:
    int count;
    robot_cmd.get_next_value(count);
    for (int i = 0; i < count; i++) {
        push_time(millis(), getTempDegF());
    }
    break;

Task 7: Temperature with Timestamps

The SEND_TIME_MILLIS command reads from the circular buffer and sends all stored data:

case SEND_TIME_MILLIS:
    int time_millis;
    float temp;
    while (get_time(time_millis, temp)) {
        tx_estring_value.clear();
        tx_estring_value.append("T:");
        tx_estring_value.append(time_millis);
        tx_estring_value.append("|");
        tx_estring_value.append(temp);
        tx_characteristic_string.writeValue(tx_estring_value.c_str());
    }
    break;

From Python, I can store 100 samples and then retrieve them all:

ble.send_command(CMD.STORE_TIME_MILLIS, "100")
ble.send_command(CMD.SEND_TIME_MILLIS, "")

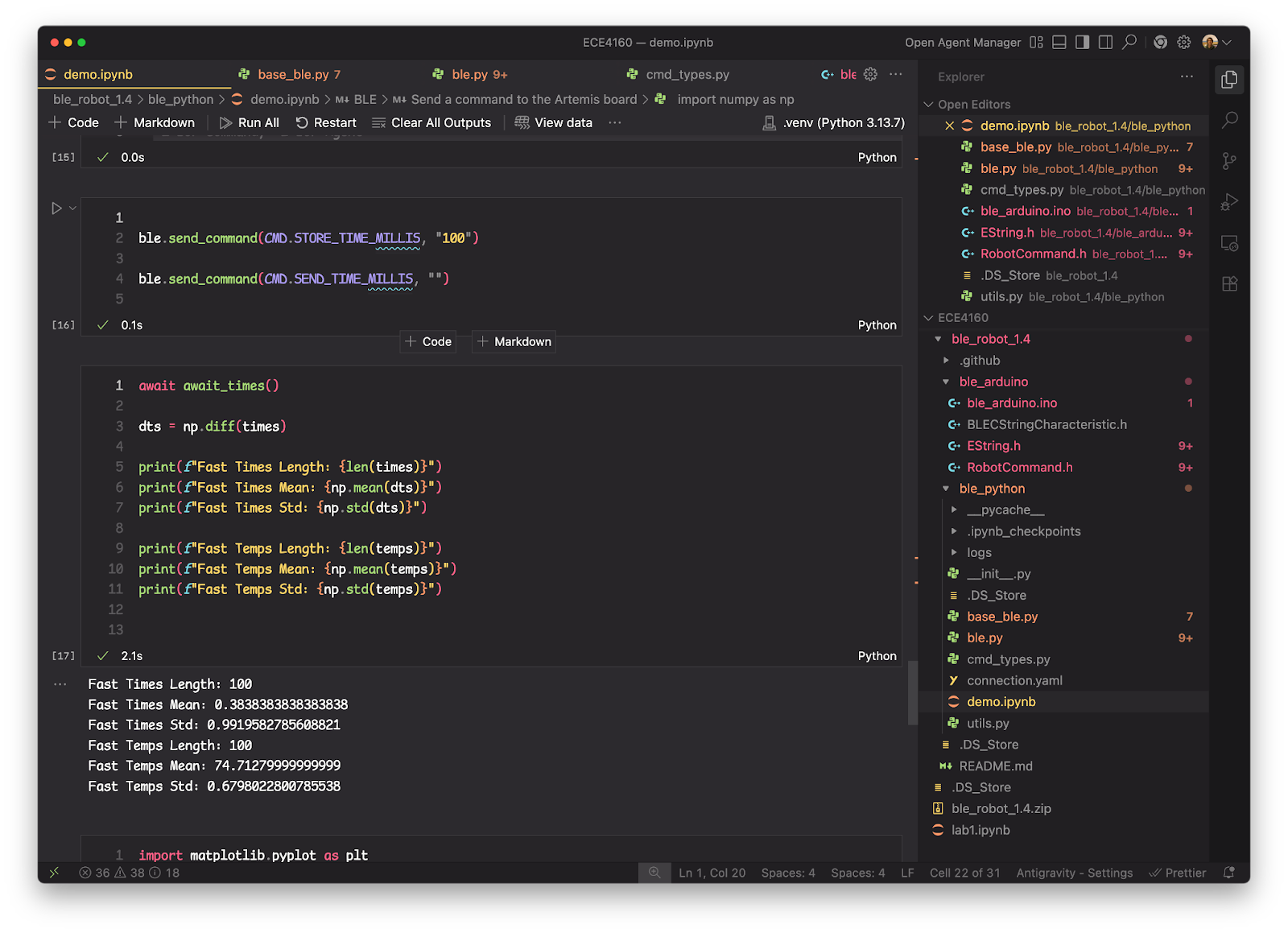

Results with the fast method:

Fast method results

  • Mean time between samples: 0.38 ms
  • About 2600 samples/second

Discussion

Sending each reading immediately works well for real-time monitoring but is slow at around 16 Hz. Storing samples first and sending them later gives much faster data capture at around 2600 Hz, but you don’t see the data until after collection and you’re limited by memory.

The Artemis has 384 kB of RAM. Each sample uses 8 bytes (4 for time, 4 for temp), so you can fit about 48,000 samples. At 0.38 ms per sample, that’s roughly 18 seconds of continuous data.

Conclusion

I got the Artemis board working with BLE and can now send commands and receive data wirelessly. The main tradeoff is between real-time data (slow) and batch recording (fast but delayed).
